Solar Cable 6MM²

Solar Cable 6MM²

$150.00
$0.00 $150.00
Sale Sold out
Taxes included.

  • Solar PV Cable – 6mm²

    Engineered for efficiency and durability, this 6mm² solar PV cable is designed to deliver reliable power transmission in solar installations. Manufactured from high-quality tinned copper with UV-resistant insulation, it ensures optimal performance and a long service life, even in harsh outdoor environments.

    Key Features:

    • Conductor: High-purity tinned copper for superior conductivity and corrosion resistance

    • Cross-Section: 6mm² – ideal for minimizing voltage drop over longer runs

    • Insulation: UV-resistant, weatherproof, and flame-retardant for outdoor use

    • Temperature Range: Suitable for extreme temperatures, ensuring stable performance year-round

    • Standards Compliance: Meets international standards for solar PV applications

    • Flexibility: Easy to handle and install in both rooftop and ground-mounted systems

Note: Price is per 100m.
Facebook Twitter Pinterest WhatsApp
View full details
Specification

ELECTRICAL TECHNICAL REFERENCE

TECHNICAL INOICATORS
Nominal voltage U0/U 0.6/1KV(AC)1800DC(non-load)
Test voltage AC6.5KV/5min(20°±0.5) or DC15KV/5min(20°C±0.5) without breakdown
Ambient temperature -40℃~+90℃
Conductor maximum temperature 120℃
Maximum short circuit temperature ≤250℃/5s
Expected service life 25 years
Bending radius ≥4D
STRUCTURE
conductor Tinned copper flexible conductor of Class 5 in 2Pfg1169
lnsulation LSZH electron-beam cross-linked Polyolefin(125℃)
sheath LSZH electron-beam cross-linked Polyolefin(125℃)

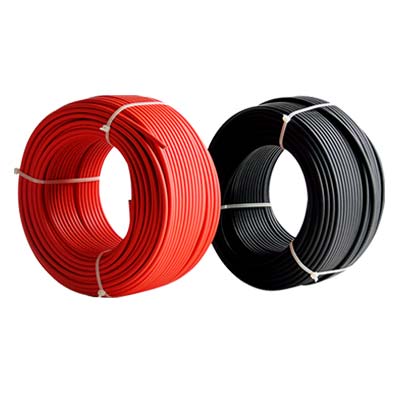

color red or black
CHARACTERISTICS COMPLIANCE
Fire-resistance EN 60332-1-2
Acid and alkali solution EN 60811-2-1
Halogen determination EN 50267/EN 60684
Weather resistance/UV resistance HD 605/A1
Compliance certification ROHS TUV
Executive standard 2 Pfg 1169/08.2007

Structural dimensions and parameters

Model Specification
(mm²)		 Insulation Nominal Thickness
(mm)		 Sheath Nominal Thickness
(mm)		 Approximate outer diameter
(mm)		 Maximum DC resistance
of conductor at 20℃
(Ω/km)		 Minimum insulation
resistance at 90℃
(mΩ/km)
PV1-F 6.0 ≥0.5 ≥0.5 6.2 3.39 0.50
PV1-F 6.0 ≥0.5 ≥0.5 5.35 3.39 0.50

Reference table for quick selection of carrying capacity

Cross-sectional area Recommended valueof ampacity (A) Download traffic conversion factor for different ambient temperatures
Copper conductor Laying in the air Ambient temperature ℃ Conversion factor
6 70 30 1.0

Note: Ambient temperature is 30°C; conductor maximum temperature is 90℃
